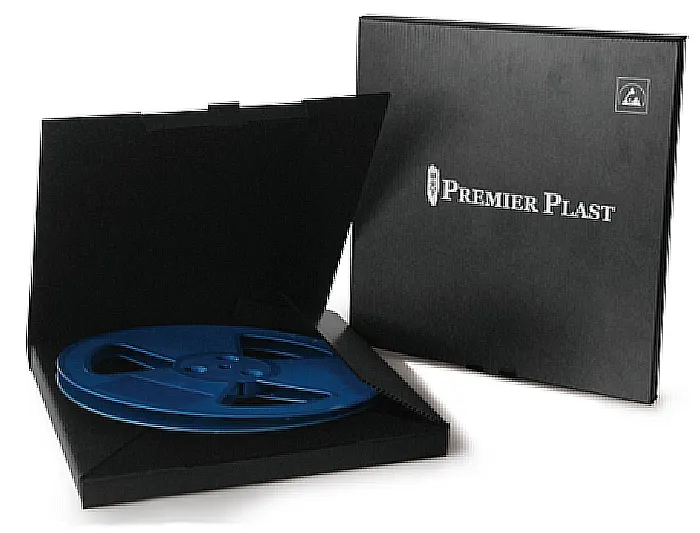

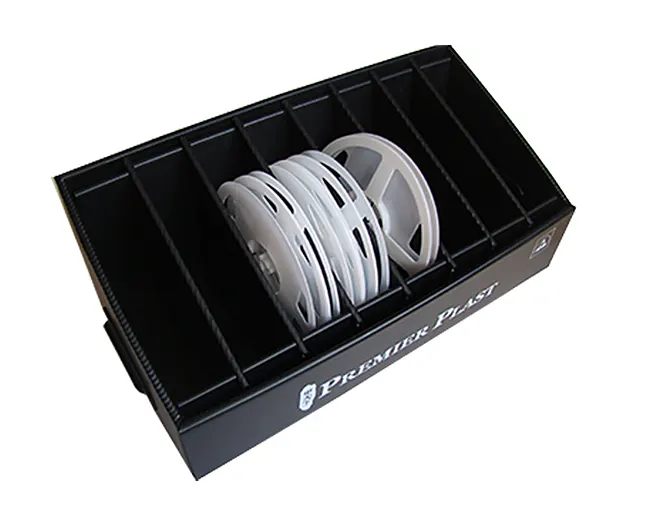

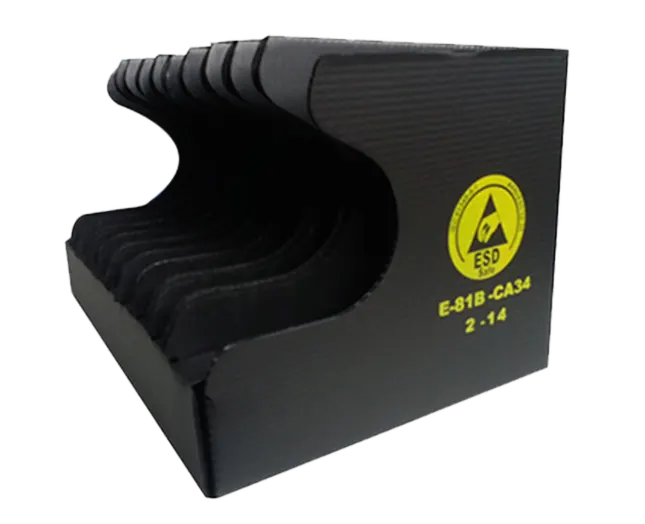

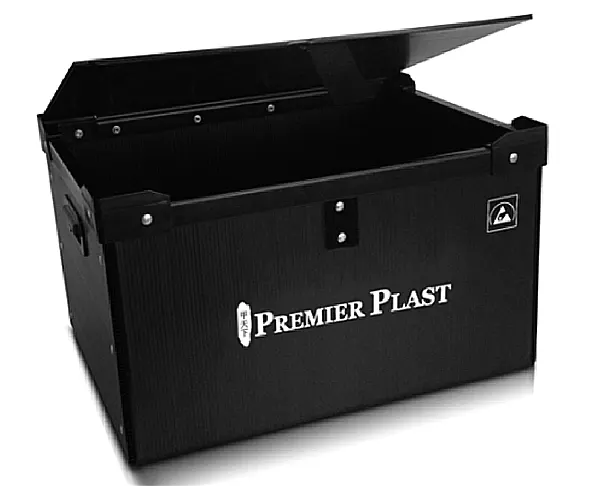

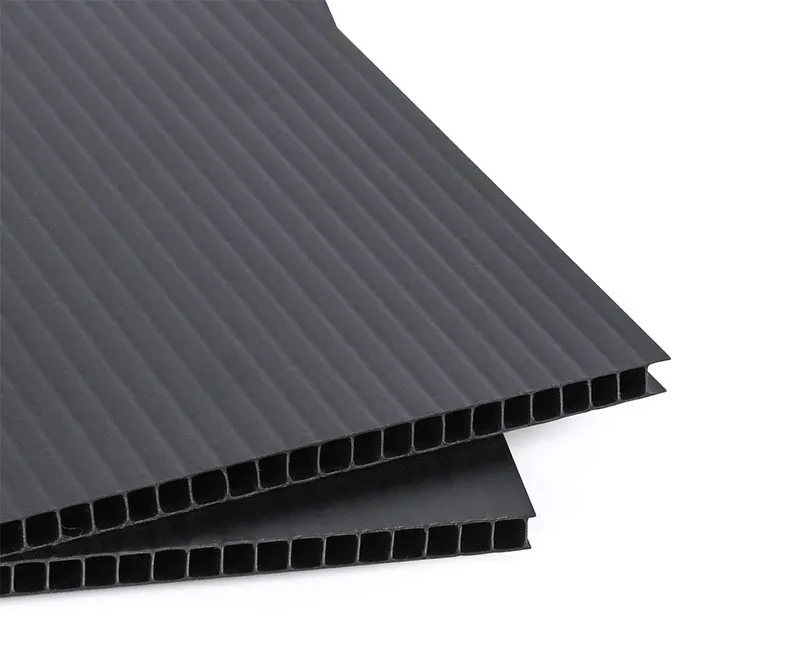

ESD BOX / Anti-Static Sheets

Delivering custom-engineered corrugated polypropylene solutions to protect, transport, and promote your products.

What Are ESD Boxes & Anti-Static Sheets?

ESD protection materials are specially designed to control or

dissipate static electricity and protect sensitive electronic components from electrostatic damage.

Commonly used in packaging, storage, and transport, materials such as anti-static and

conductive polypropylene sheets help improve product safety and handling reliability.

Definition and Common Uses

Durability, Print Quality, and Cost-Effectiveness

These boards are widely used for high-impact visual communication.

They can be printed with logos, graphics, text, and promotional messages using various printing technologies.

Common uses include yard signs, retail displays, directional signage, promotional boards, event signage, and point-of-purchase (POP) displays.

Their lightweight structure and ease of installation make them ideal for temporary as well as long-term applications.

High-quality advertising boards must withstand various environmental conditions while maintaining visual impact. Materials like corrugated plastic and polypropylene offer excellent resistance to moisture, UV exposure, and physical wear, ensuring long-lasting performance outdoors.

In addition, superior print quality is essential for sharp graphics and vibrant colors that attract attention and effectively convey brand messages. Combined with their affordability and reusability, these boards provide a cost-effective solution for businesses seeking high return on investment in advertising and promotional campaigns.

Product Features & Benefits

Our anti-static and ESD sheets offer reliable static protection with permanent anti-static performance, controlled surface resistivity, lightweight durability, and resistance to moisture, chemicals, and impact. Reusable and eco-friendly, they are ideal for demanding industrial applications.

Permanent anti-static performance

Surface resistivity control

Lightweight yet durable construction

Moisture, chemical, and impact resistance

Reusable and environmentally friendly

Benefits

Protect sensitive electronic components

Reduce product damage and defects

Improve safe storage and transportation

Lower packaging replacement costs

SPECIFICATION DATA FOR ESD

Versatile, durable boards for a wide range of indoor and outdoor signage needs.

TYPE	Conductive			Antistatic			Normal
Thickness	3	4	5	3	4	5	3	4	5
Surface Resistance（ohms)	10 ^3-5	10 ^3-5	10 ^3-5	10 ^6-11	10 ^6-11	10 ^6-11	≥10 ¹²	≥10 ¹²	≥10 ¹²
Breaking Strength(N)	＞250	＞300	＞400	＞250	＞300	＞400	＞250	＞300	＞400
Horizontal Press Force(N)	＞900	＞1000	＞1200	＞900	＞1000	＞1200	＞900	＞1000	＞1200
Vertical Press Force(N)	＞150	＞350	＞500	＞150	＞350	＞500	＞150	＞350	＞500
Tear Strenth(％）	＞50	＞50	＞50	＞50	＞50	＞50	＞50	＞50	＞50

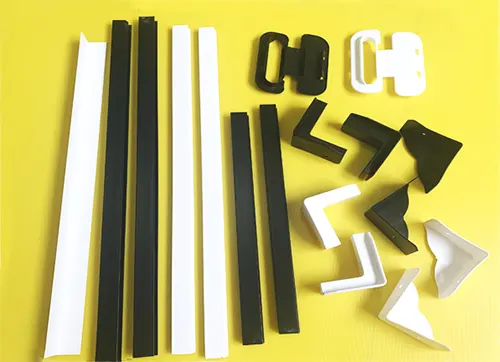

BOX ACCESSORIES
